Segmented Vaginal Applicator Set

Vagina, Cervix & Endometrium

  • Simplicity

    The CT/MR Segmented Vaginal Applicator is designed to accurately and completely treat the vagina and cervix. The four-segment design in multiple widths allows for a range of both lengths as well as diameters to fit a variety of anatomies. The segments are easily fixed in place with a single, toolless lock knob.

    Flexibility

    The CT/MR Segmented Vaginal Applicator is available in straight, 15°, 30°, 45° or stump configurations to effectively treat a variety of anatomies. 2.0 cm, 2.5 cm, 3.0 cm and 3.5 cm diameter build-up caps are available standard and can be assembled with 2, 3 or all 4 segments.

    Reliability

    The titanium construction with laser welded connections allows for enhanced stability and torque resistance. The used Delrin®* build-up cap cylinder segments resist wear and tear from repeated use and cleaning as well as sterilization.

    • Autoclavable components

    • Build-up caps in sets of 4 segments ranging from 2.0 to 3.5 cm in diameter

    • Stump and intrauterine design with four angle options

    • 3.2 mm intrauterine tubes

    • Includes optional perineal retainer for applicator stabilization

    • Expected lifetime of 5 years

    • Optional CT/MR intrauterine smit sleeves

    • Available with connections for all HDR transfer tubes

    • MR Conditional

    • EU MDD / ISO / FDA compliant

    • The applicator has been tested for mechanical compatibility with the indicated manufacturer’s transfer tubes to confirm there are no internal source obstructions. Users are responsible for validating applicator compatibility, including treatment planning systems, with their after loading equipment. Varian is a trade name/trademark of Varian Medical Systems, Inc. Elekta/Nucletron are trade names/trademarks of Elekta AB (publ).

Segmented vaginal cylinder segments

Isodose

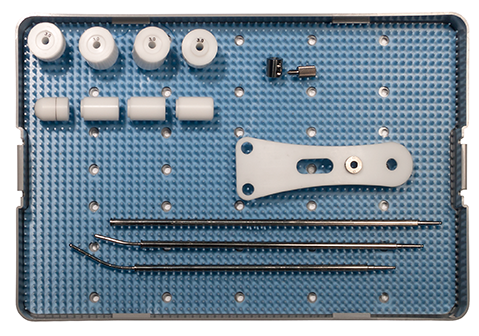

Sterilization tray with selected Segmented Vaginal Applicator Set components

Segmented Vaginal Applicator Set

For Varian Transfer Tubes

Bravos™ or GammaMedplus™

KBE-1004 CT/MR Segmented Vaginal Applicator Set, for Varian Transfer Tubes

For Elekta Transfer Tubes

Flexitron™

KBE-0804  CT/MR Segmented Vaginal Applicator Set, for Elekta Transfer Tubes

For BEBIG Transfer Tubes

SagiNova®

KBE-1406  CT/MR Segmented Vaginal Applicator Set, for SagiNova®
