Testicle Shields & Stands
Klarity offers Testicle Shields in lead, and also in silicone rubber for CT treatments. Both sets of shields should be used with the adjustable stand.
Testicle Shields
Testicle Shields should be used with the adjustable Testicle Shield Stand

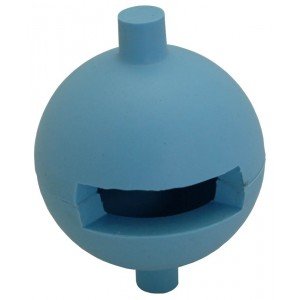

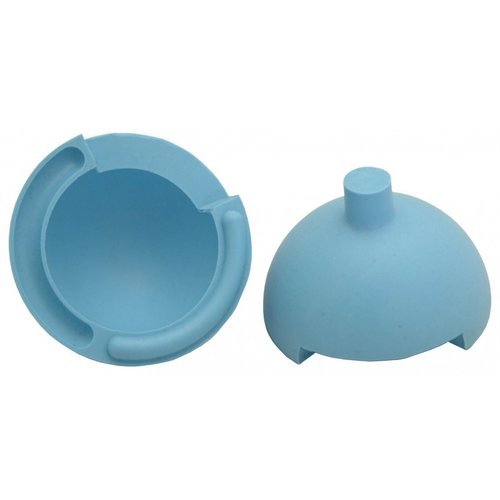

CT Testicle Shields are made of blue silicone rubber with shore hardness of 50A, and are available in three sizes: small, medium and large
KRP-MTT-926-200
Small CT Testicle Shield
Inner Diameter: 2 in (5.09 cm)
Outer Diameter: 3 in (7.65 cm)
Opening: 0.6 x 1.25 in (1.53 x 3.19 cm)
KRP-MTT-926-250
Medium CT Testicle Shield
Inner Diameter: 2.5 in (6.37cm)
Outer Diameter: 3.5 in (8.92 cm)
Opening: 0.75 x 1.6 in (1.91 x 4.08 cm)
KRP-MTT-926-300
Large CT Testicle Shield
Inner Diameter: 3 in (7.65 cm)
Outer Diameter: 4 in (10.2 cm)
Opening: 1 x 2 in (2.55 x 5.09 cm)
The CT Testicle Shields should be used with the adjustable CT Stand.

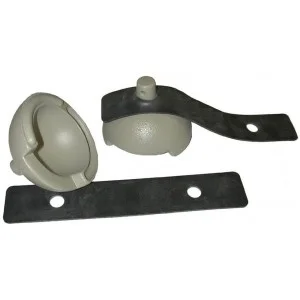

The lead testicle shields are designed with a tongue and groove interlock to eliminate radiation leakage. The top and bottom halves can be secured together with two rubber straps (supplied with each unit) or with nylon tape. Rotating the entrance of the shield toward the ceiling will reduce scatter radiation from entering the shield. No rubber straps are needed if using the adjustable stand
KRP-MTT-928-200
Small Lead Testicle Shield
Inner Diameter: 2 in (5.09 cm)
Outer Diameter: 3 in (7.65 cm)
Opening: 0.6 x 1.25 in (1.53 x 3.19 cm)
1/2in (1.27 cm) lead wall
KRP-MTT-928-250
Medium Lead Testicle Shield
Inner Diameter: 2.5 in (6.37cm)
Outer Diameter: 3.5 in (8.92 cm)
Opening: 0.75 x 1.6 in (1.91 x 4.08 cm)
1/2in (1.27 cm) lead wall
KRP-MTT-928-300
Large Lead Testicle Shield
Inner Diameter: 3i n (7.65 cm)
Outer Diameter: 4 in (10.2 cm)
Opening: 1x2 in (2.55 x 5.09 cm)
1/2 in (1.27 cm) lead wall
The CT Testicle Shields should be used with the adjustable CT Stand.
Testicle Shield Stand
Lead Shields can be used with rubber straps (included) or with the adjustable stand.

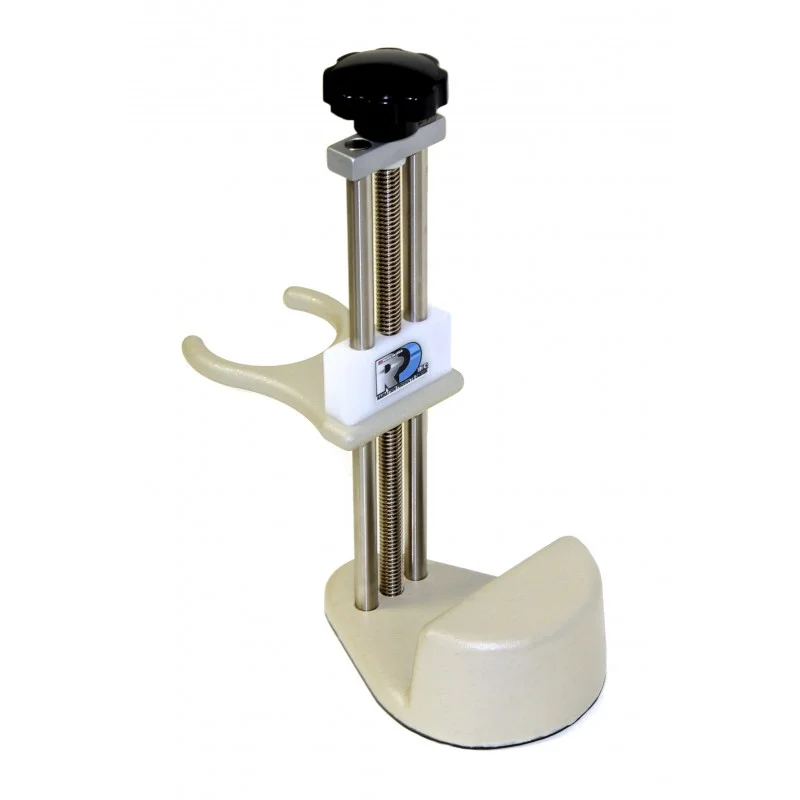

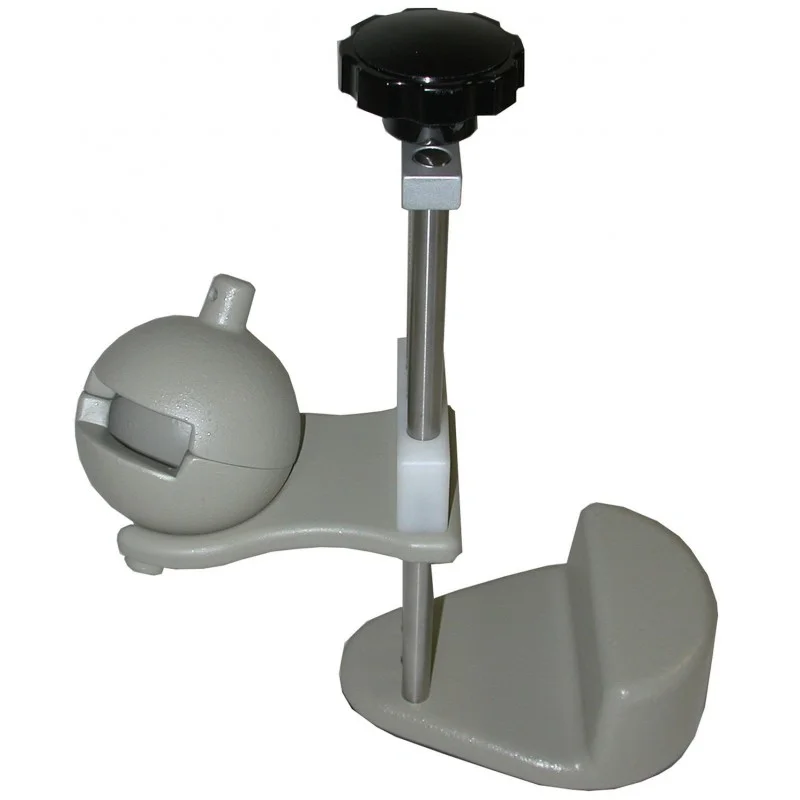

Adjustable Testicle Shield Stand for all 3 sizes of the round lead testicle shields and CT testicle shields. A plastic plate secured to the base provides easy positioning. A hand knob allows for easy vertical adjustment from 1” to 10” (five turns per inch). For anterior and posterior treatments.
KRP-MTT-926-100
Adjustable Testicle Shield Stand
5in w x 10in d x 13.5in h
10.6 lbs
Set Up Recommendations:
Place half of shield in the stand cradle.
Adjust height and place testicles on the shield.
Fit the other half of the shield with the first half over the testicles and adjust height of stand if needed.
Rotate the opening of the shield toward the ceiling to reduce scatter from entering the shield.
